3000 - 60000M3/H Industrial Dust Collector 3.7KW Industrial Dust Collection System
Product Details:
| Place of Origin: | China |
| Brand Name: | ANZHI |
| Model Number: | Model：TODC-2M/4M/6M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Packaging Details: | 1 SET |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 500 SETS PER MONTH |
|
Detail Information |
|||
| Motor Power: | 1.5-75KW | Structure: | Bag House |
|---|---|---|---|
| Installation: | Floor/Ceiling | Showroom Location: | None |
| Sample: | Pay For Sample | Operating Temperature: | 0-80℃ |
| Air Volume: | 314000 M3/h | Material Of Bag: | Non-woven,Polyester |
| Marketing Type: | Ordinary Product | Filtering Bag: | Tailored |
| Odm: | Yes | Temeprature: | 0-800℃ |
| Air Flow: | 3000-60000M3/H | Cleaning Type: | Online Cleaning |
| Material: | Carbon Steel/Stainless Steel | Filter Area: | 230 M³ - 4600 M³ |
| Temperature: | 0-800℃ | Dust Collection: | ≤10mg/m³ |
| Filter Efficiency: | Up To 99.9% | Filter Speed: | 1.20-1.50 M/min |
| Machinery Test Report: | Provided | Color: | White, Blue, Customizable |
| Filter Bags: | Polyester Filter Bag | Pulse Valve: | 4 |
| Bottom: | Reforcement 75~100mm | Voltage: | 220V/380V |
| System Resistance: | < 1000 Pa | ||
| Highlight: | 30000M3/H Industrial Dust Collector,60000M3/H Industrial Dust Collector,3.7KW industrial dust collection system |
||
Product Description

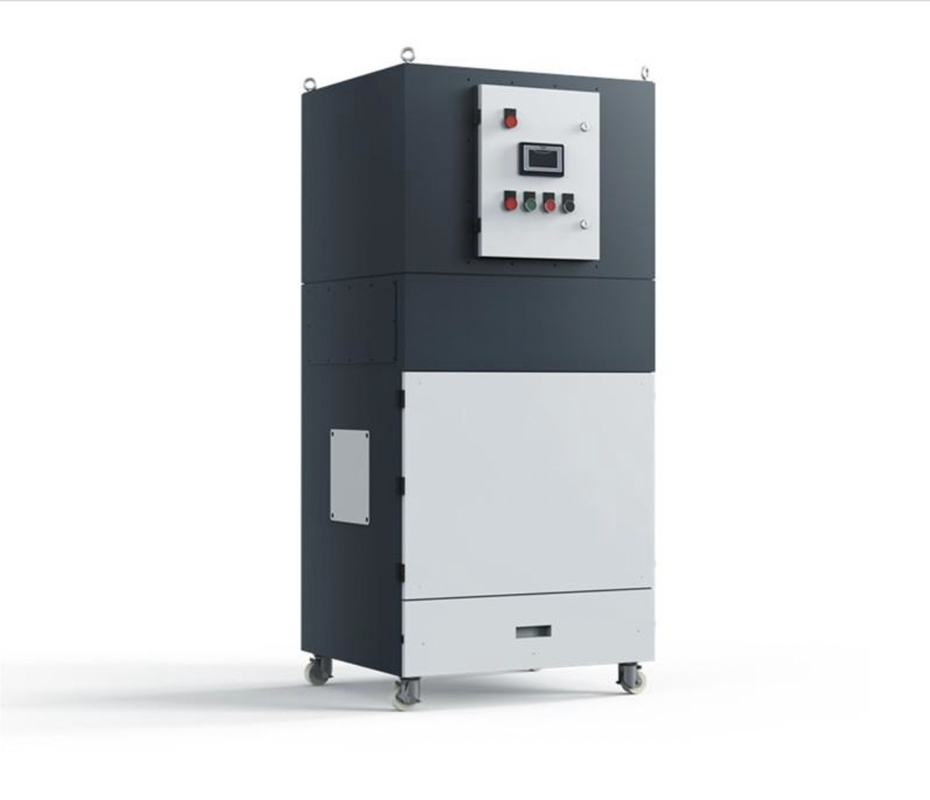

TODC-M Series Dust Collector
TODC-M Series Dust Collector.
eatures: small footprint and easy to move.
Applications: laser cutting machine, welding table, grinding table, woodworking, graphite processing, etc.
◎ Siemens motor, ultra-high negative pressure fan;
◎ American HV Filtration system;
◎ Visual operator panel;
◎ Industrial appearance design;
◎ Self-developed control system: support EtherCAT bus protocol, energy-saving frequency conversion control
Technical Parameter
|
|
TODC-2M |
TODC-4M |
TODC-6M |
Filter material |
HV/Ahlstrom/TORAY,F9 |
HV/Ahlstrom/TORAY,F9 |
HV/Ahlstrom/TORAY,F9 |
No.of filters |
2 |
4 |
6 |
Total pressure |
2000 |
2600 |
3500 |
Filtration efficiency |
99.99% |
99.99% |
99.99% |
Filter area |
40M2 |
80M2 |
120M2 |
Air blower |
3KW Motor |
3.7KW Motor |
11 KW Motor |
Dust drum |
|
||
Power |
Three- phase four- wire,380v |
Three- phase four- wire,380v |
Three- phase four- wire,380v |
Air requirements |
0.6MPa, Oil-free and water-free compressed air |
0.6MPa, Oil-free and water-free compressed air |
0.6MPa, Oil-free and water-free compressed air |
Machine weight |
400KG |
520KG |
610KG |
Machine dimension |
A :913; B 720; C 1917 |
A :1215.5; B 1022.2; C 2026 |
A :1325.5; B 1420; C 2233 |
