1.5kw - 75KW Industrial Dust Collector Laser Cutting Dust Collector
Product Details:
| Place of Origin: | China |
| Brand Name: | ANZHI |
| Model Number: | TODC-4L/6L/6LS/8L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Packaging Details: | 1 SET |
| Payment Terms: | T/T, MoneyGram, Western Union |
| Supply Ability: | 500 SETS PER MONTH |
|
Detail Information |
|||
| Motor Power: | 1.5-75KW | Structure: | Bag House |
|---|---|---|---|
| Installation: | Floor/Ceiling | Showroom Location: | None |
| Sample: | Pay For Sample | Operating Temperature: | 0-80℃ |
| Air Volume: | 20000-24000m3/h | Material Of Bag: | Non-woven,Polyester |
| Marketing Type: | Ordinary Product | Filtering Bag: | Tailored |
| Odm: | Yes | Temeprature: | 0-800℃ |
| Air Flow: | 3000-60000M3/H | Cleaning Type: | Online Cleaning |
| Material: | Carbon Steel/Stainless Steel | ||
| Highlight: | 1.5kwIndustrial Dust Collector,75KW Industrial Dust Collector,75KW Laser Cutting Dust Collector |
||
Product Description

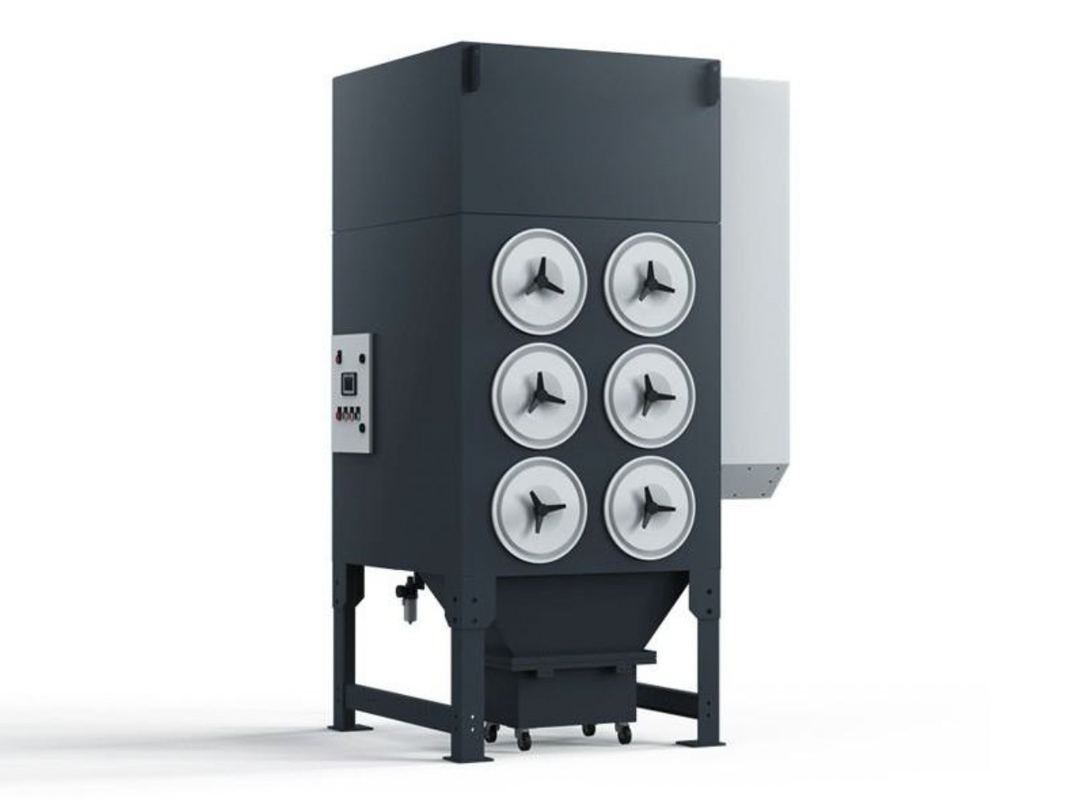

Laser Cutting Dust Collector TODC-L Series
Under the strong negative pressure of the turbine fan, when the polluted air pipe enters the air inlet, it first encounters the spoiler between the air inlet, which spoils the incoming air and slows down the flow speed. Due to the gravity settlement, the coarse dust falls directly into the dust mouth of the large particles, which plays the role of pre-dedusting. After the fine-grained and low-density dust particles enter the dust filter chamber, the dust in the air stays on the surface of the filter element, and the filtered clean air enters the air chamber and is collected by the exhaust pipe to the outlet through the fan.
Configuration
| TODC-4L/6L/8L/12L | |
| Controller | Independent R&D |
| HMI | LCD |
| Motor | SIEMENS |
| Backflush valve | Pulse control |
| Filter | HV/Ahlstrom/TORAY / SBFEC |
| Protocol | EtherCAT |
| Energy saving(optional) | Inverter control |
Operation Diagram
| 1. | Air inlet |
| 2. | Filter element |
| 3. | Ash bucket |
| 4. | Clean air outlet |
| 5. | Air storage tank |
| 6. | Electromagnetic pulse valve |
| 7. | Flower board |
| 8. | Pulse back blowing compressed air |
| 9. | Dust fall |
Technical Parameters
|
|
|
|
|
| TODC-4L | TODC-6L | TODC-8L | TODC-12L | |
| Filter material | HV/Ahlstrom/TORAY F9 HV/Ahlstrom/TORAY,F9 | |||
| Number of Filter | 4 | 6 | 8 | 12 |
| Air volume | 4000m³/h | 6000m³/h | 9000m³/h | 10000m³/h |
| Air pressure | 3000 | 3600 | 5000 | 5000 |
| Filtration efficiency | 99.99% | 99.99% | 99.99% | 99.99% |
| Filtering area | 80㎡ | 120㎡ | 160㎡ | 240㎡ |
| Air Blower | 5.5KW SIEMENS | 7.5KW SIEMENS | 11KW SIEMENS | 15KW SIEMENS |
| Collector capacity | 45L | 50L | 90L | 120L |
| Power requirements | THREE-PHASE FOUR -WIRE,380V | |||
| Air pressure request | 0.6MP, compressed air without oil and water | |||
| Unit weight | 700KG | 900KG | 1200KG | 1800KG |
| Outline Dimension(mm) | A:2198,B:1348, C:1060,D:303 |
A:2837,B:1423, C:1180,D:383 |
A:2575,B:2215, C:1016,D:453 |
A:2751,B:2215, C:1516,D:553 |
| Emission concentration(mg/M3) | <10 | <10 | <10 | <10 |
Common Spare Parts
| Number | Product Name |
| 1 | Topsinn assembly filter |
| 2 | Diaphragm valve |
| 3 | Cartridge cover |
| 4 | Repair door gasket |
| 5 | Topsinn controller board |
| 6 | Topsinn operation interface |
