40W IR Ultrafast Laser System 500fs To 10ps Infrared Laser
Product Details:
| Brand Name: | ANZHI |
| Model Number: | 40-IR |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 100+pcs+3-7days |
|
Detail Information |
|||
| Average Power: | 10 W | Dimensions: | 1000 Mm X 500 Mm X 500 Mm |
|---|---|---|---|
| Pulse Duration: | Femtosecond | Cooling Method: | Water Cooling |
| Peak Power: | 1 MW | Laser Type: | Ultrafast |
| Spatial Mode: | TEM00 | Repetition Rate: | 1 KHz |
| Output Configuration: | Single Output | Weight: | 50 Kg |
| Control Interface: | Computer Control | Wavelength: | 800 Nm |
| Polarization: | Linear | Beam Quality: | M² < 1.2 |
| Highlight: | ir ultrafast laser system,ultrafast laser system 500fs,10ps infrared laser |
||
Product Description

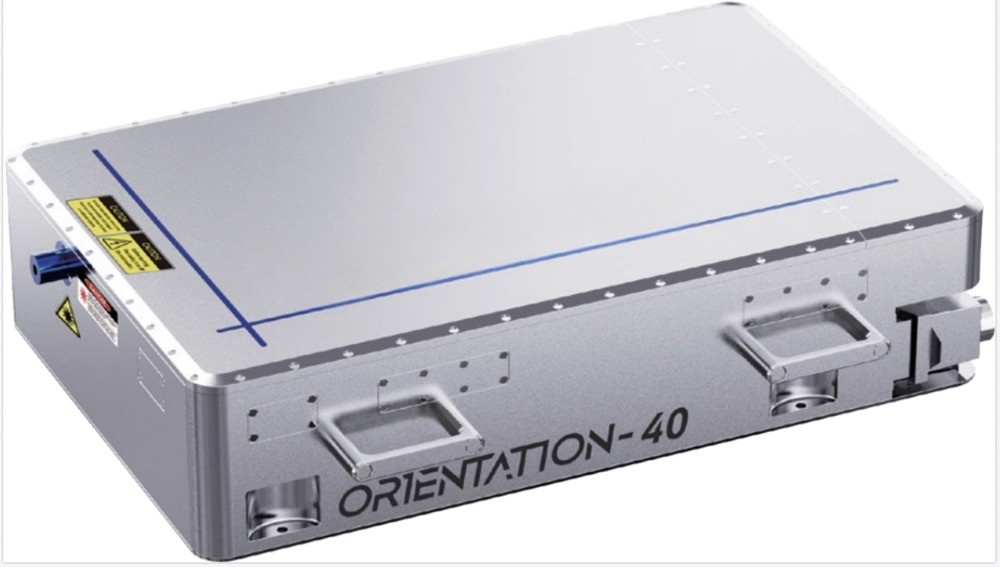

40W Infrared Femtosecond Laser
40-IR
- Pulse width is adjustable 500fs-10ps
- The repetition rate is adjustable from 25kHz to 1MHz
- The output energy of single pulse is 1.6mJ
- The highest output power is 40W
Overview
40W Infrared Femtosecond Laser:The Orientation-40-IR series femtosecond laser adopts the fiber amplification solution independently developed . The small and lightweight version of the laser can provide an average power of 40W, a pulse width of 500fs-10ps, and a maximum output of 1.6mJ of single pulse energy , can realize 25kHz-1MHz repetition frequency continuously adjustable, 24 hours power fluctuation is less than or equal to 1%, support external harmonic generator, all standard burst function, support 1-10 burst output, including Trigger / Gate function.
Specifications
