10MW 1kHz Ultrafast System 800nm Femtosecond Laser Filamentation
Product Details:
| Brand Name: | ANZHI |
| Model Number: | 30-UV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A |
| Supply Ability: | 100+pcs+3-7days |
|
Detail Information |
|||
| Average Power: | 30 W | Pulse Energy: | 10 μJ |
|---|---|---|---|
| Repetition Rate: | 1 KHz | Beam Divergence: | 0.5 Mrad |
| Peak Power: | 10 MW | Pulse Duration: | 100 Fs |
| Output Power Stability: | ± 1% | Cooling Method: | Air-cooled |
| Polarization: | Linear | Laser Type: | Femtosecond |
| Wavelength: | 800 Nm | Beam Diameter: | 1 Mm |
| Beam Quality: | M² < 1.2 | Spatial Mode: | TEM00 |
| Highlight: | 1khz ultrafast system,ultrafast system 800nm,800nm femtosecond laser filamentation |
||
Product Description

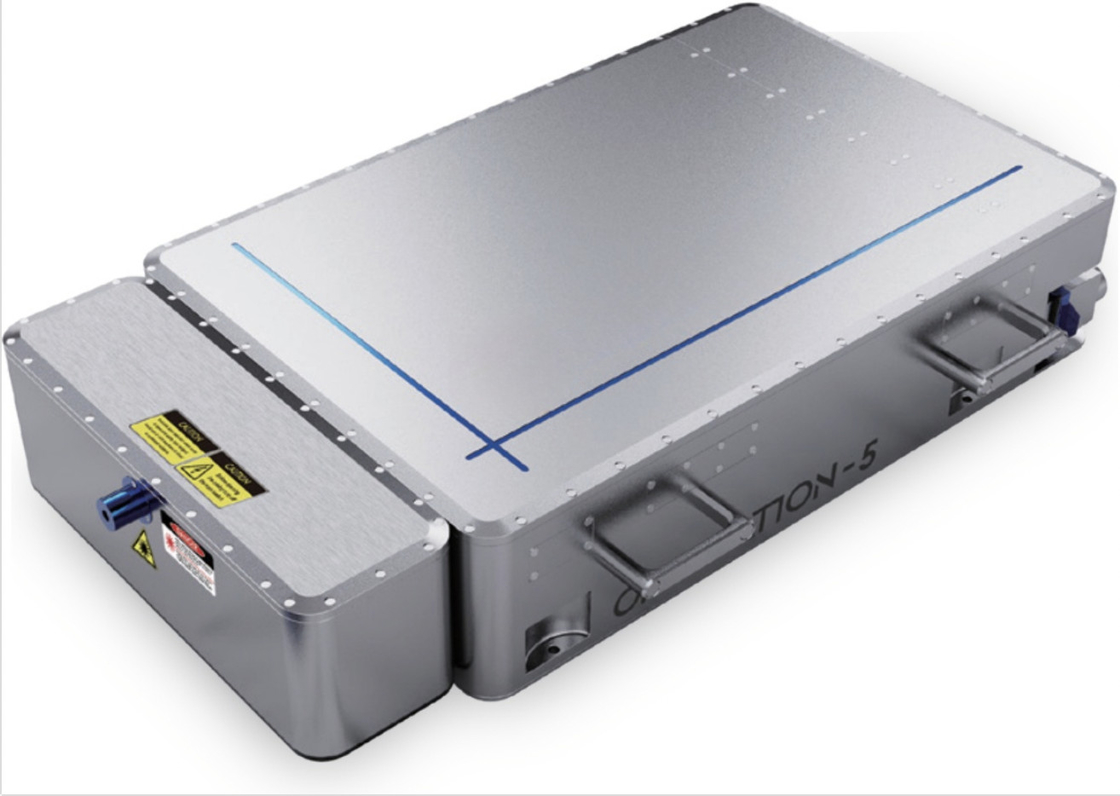

30W UV Femtosecond Laser Core System 343nm Output 500fs Pulse Duration 37.5 mu J Single Pulse Energy Orientation-30-UV Serie
30-UV
- Maximum single pulse energy of 37.5μJ
- The output power is 30W
- pulse duration less than 500fs
- 343nm UV output
Overview
30W UV Femtosecond Laser:The Orientation-30-UV series femtosecond laser adopts the solid-state amplification solution independently developed . The standardized version of the laser can provide an average power of 30W, a pulse width less than 500fs, and a single pulse energy of 37.5μJ at maximum, which can achieve 800kHz-1MHz. The repetition frequency is continuously adjustable, the power fluctuation is less than or equal to 1% in 24 hours, it supports external harmonic generator, and outputs 343nm ultraviolet wavelength light, the whole system comes standard with burst function, supports 1-10 burst outputs.
Specifications
