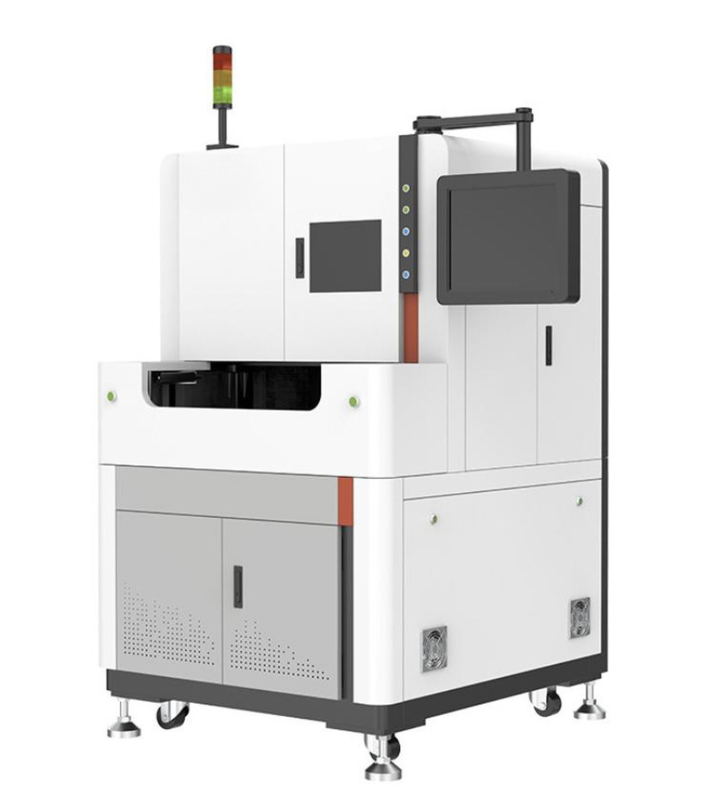

500W CNC Fiber Laser Welding Machine 200mmx200mm Laser Solder Wire Soldering Machine
Product Details:
| Brand Name: | ANZHI |
| Model Number: | Laser solder wire soldering machine |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Packaging Details: | 1 SET |
| Payment Terms: | L/C, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 100 pieces per month |
|
Detail Information |
|||
| Welding_Accuracy: | ±0.02mm | Welding_Type: | CCD Welding |
|---|---|---|---|
| Control System: | CNC | Welding_Speed: | 0-120mm/s |
| Welding_Material: | Metal | Cooling Method: | Water Cooling |
| Laser Power: | 500W | Product_Name: | Fiber Laser CCD Welding Machine |
| Working Environment: | Temperature: 10-35℃, Humidity: 20%-80% | Welding Area: | 200mm*200mm |
| Welding_Thickness: | 0.2mm-3mm | Power Supply: | AC 220V/50Hz |
| Laser_Type: | Fiber Laser | Warranty: | 1 Year |
| Highlight: | cnc fiber laser welding machine,fiber laser welding machine 200mmx200mm,500w wire soldering machine |
||
Product Description
Laser solder wire soldering machine
After laser preheating, the automatic wire feeding mechanism will send the tin wire to the specified position, and the laser will send the energy(below the temperature of the soldered components and beyond the melting point of the solder) to the soldering pad. Then the solder will melt to complete soldering.
Introduction
- This product is suitable for PCB spot soldering, metal and non-metal material soldering, plastic welding, sintering, heating and automation of special soldering process on automatic production line. Due to the characteristics of real-time and highprecision control of the temperature of the object, it is especially suitable for high-precision soldering process of parts that cannot withstand high temperature and thermal components around the soldering point.
Machine Advantage
- Constant temperature feedback system, the high-precision infrared temperature detector is used for real-time temperature feedback and control, the solder joint temperature is constant, and the temperature setting is input directly; Solder joint temperature 100-600 ℃ continuously adjustable; Accurate temperature control, error < 3 ℃;
- CCD vision positioning system
- Dynamically observe the soldering process and present the spot clearly in real time; Visual positioning to meet the requirements of fully automatic or unified accelerator work of high-precision devices and reduce manual intervention;
- Coaxial motion system
- Laser, CCD, temperature measurement and indicator light are coaxial at four points to avoid complex optical light adjustment and effectively improve soldering efficiency;
- Modular design
- Tin wire / solder paste is integrated with laser soldering for easy control;
Applicable component type
- It is mainly applicable to the soldering of tht plug-in devices, special-shaped devices and micro precision special parts;
- Suitable for VCM motor coil soldering, FPC or PCB soldering, high-precision LCD soldering and other fields.
- Widely used in mobile phones, aerospace, medical, automotive electronics and other industries
Application
1. Automotive electronics, micro speakers, motors, connectors, cameras, PTH, PGAs (pin grid type electronic devices), RFI connectors, etc.
2. Soldering materials: PCB and pin parts, PCB and wire harness, FPC and pin parts, PCB pin welding, etc.
3,Widely used in cell phones, aerospace, medical, automotive electronics and other industries.
