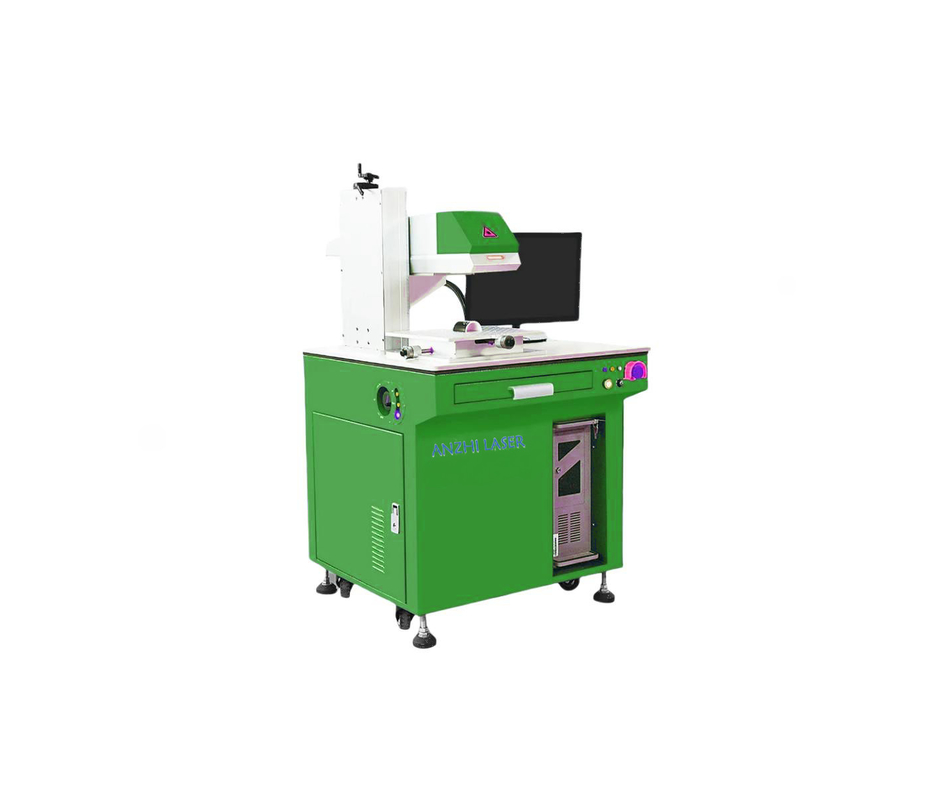

1000KHz Mopa Fiber Marking Laser Machine 0.5KW CCD Marking
Product Details:
| Place of Origin: | China |
| Brand Name: | ANZHI LASER |
| Model Number: | 20W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pieces per month |
|
Detail Information |
|||
| Wavelength: | 1064nm | Cooling Mode: | Air Cooling |
|---|---|---|---|
| Marking Depth: | ≤0.3mm | Marking Area: | 110mm X 110mm |
| Marking Software: | EZCAD | Laser Power: | 20W |
| Marking Content: | Text, Numbers, Symbols, Barcodes, QR Codes, Graphics | Supported File Formats: | PLT, DXF, AI, BMP, JPG, Etc. |
| Highlight: | 1000KHz fiber marking laser machine,fiber marking laser machine 0.5KW,0.5KW CCD Marking Machine |
||
Product Description
2, Fiber output, it is flexible to apply, the system is easy to make 3D processing
3, Good beam quality, TEM00 single-module output, after collimating diameter is 10mm, M2<1.8, divergence angle of beam is 0.24mrad
| Model | YLP-MDF-152 |
| Laser output power | 20 / 30 / 50W |
| Beam quality M2 | ＜1.3 |
| Marking area | 160x160mm |
| Working distance | 197±2mm |
| Max surface height difference | ±20mm |
| Min. character size | 0.5mm |
| Pulse Repetion | 1＜F＜1000KHz |
| Cooling method | Air cooling |
| Power consumption | 0.5KW |
Product Description:
The Mopa Fiber Laser CCD Marking Machine is a versatile and precise tool designed for high-quality marking applications. Equipped with advanced technology, this machine ensures efficient and accurate marking on various materials.
One of the standout features of this machine is its use of the EZCAD marking software. This powerful software provides users with a user-friendly interface and a wide range of functions to create intricate and detailed markings with ease.
With a marking depth of ≤0.3mm, this machine is capable of producing precise and legible markings with fine details. Whether you need to mark serial numbers, barcodes, logos, or other designs, this machine can handle it all with precision.
Supported by a variety of file formats including PLT, DXF, AI, BMP, JPG, and more, the Mopa Fiber Laser CCD Marking Machine offers flexibility and compatibility for different design needs. Users can easily import their designs into the software and start marking without any hassle.
The marking area of 110mm x 110mm provides ample space for marking a wide range of products of varying sizes. Whether you are working on small components or larger items, this machine offers a generous marking area to accommodate your needs.
Designed to operate in a working humidity range of 5% to 75%, this machine is suitable for use in various environments. Whether you are working in a dry or humid setting, you can rely on the Mopa Fiber Laser CCD Marking Machine to deliver consistent and high-quality results.
In summary, the Mopa Fiber Laser CCD Marking Machine is a reliable and efficient tool for all your marking needs. With its advanced features, precise marking capabilities, and user-friendly software, this machine is a valuable addition to any workspace.
Features:
- Product Name: Mopa Fiber Laser CCD Marking Machine
- Working Humidity: 5%-75%
- Laser Power: 20W
- Laser Type: Mopa Fiber Laser
- Marking Software: EZCAD
- Cooling Mode: Air Cooling
Applications:
The ANZHI LASER 20W Mopa Fiber Laser CCD Marking Machine is a versatile and reliable tool suitable for a variety of product application occasions and scenarios. With its advanced technology and high-quality construction, this machine is ideal for use in different industries and settings.
1. Handheld Fiber Laser Cleaning Machine: The portable design and precise marking capabilities of the ANZHI LASER 20W Mopa Fiber Laser CCD Marking Machine make it perfect for applications that require handheld operation. Whether you need to clean rust, paint, or other contaminants from surfaces, this machine can deliver efficient and effective results.
2. CNC Fiber Laser Cutting Machine: The ANZHI LASER 20W Mopa Fiber Laser CCD Marking Machine can also be used in conjunction with CNC systems for laser cutting operations. Its Mopa Fiber Laser technology ensures high precision and accuracy, making it suitable for cutting a wide range of materials with ease.
3. Fiber Optic Laser Cutting Machine: For applications that require intricate and detailed cutting tasks, the ANZHI LASER 20W Mopa Fiber Laser CCD Marking Machine is an excellent choice. Its compact size and powerful laser output make it well-suited for cutting fiber optic materials with precision and efficiency.
Manufactured in China, this laser marking machine is designed to operate within a working temperature range of 10-35℃. Its air cooling system ensures optimal performance and reliability, while the working voltage of AC 110V/220V, 50/60Hz allows for versatile use in different environments. The marking area of 110mm X 110mm provides ample space for various marking tasks, making it suitable for a wide range of product marking and identification needs.
Customization:
Product Customization Services for the ANZHI LASER 20W Mopa Fiber Laser CCD Marking Machine:
Brand Name: ANZHI LASER
Model Number: 20W
Place of Origin: China
Marking Content: Text, Numbers, Symbols, Barcodes, QR Codes, Graphics
Working Temperature: 10-35℃
Working Voltage: AC 110V/220V, 50/60Hz
Laser Type: Mopa Fiber Laser
Marking Area: 110mm X 110mm
Support and Services:
The Product Technical Support and Services for the Mopa Fiber Laser CCD Marking Machine include:
- Comprehensive troubleshooting guidance for hardware and software issues.
- Regular software updates and patches to ensure optimal performance.
- Remote assistance for quick problem resolution.
- On-site technical support for more complex issues.
- Training sessions to help users maximize the capabilities of the machine.
Packing and Shipping:
Product Packaging:
The Mopa Fiber Laser CCD Marking Machine is carefully packaged in a sturdy cardboard box with ample protective padding to ensure safe transportation and delivery.
Shipping:
Once your order is confirmed, the Mopa Fiber Laser CCD Marking Machine will be promptly shipped using a reliable courier service. Tracking information will be provided so you can monitor the delivery status of your product.
