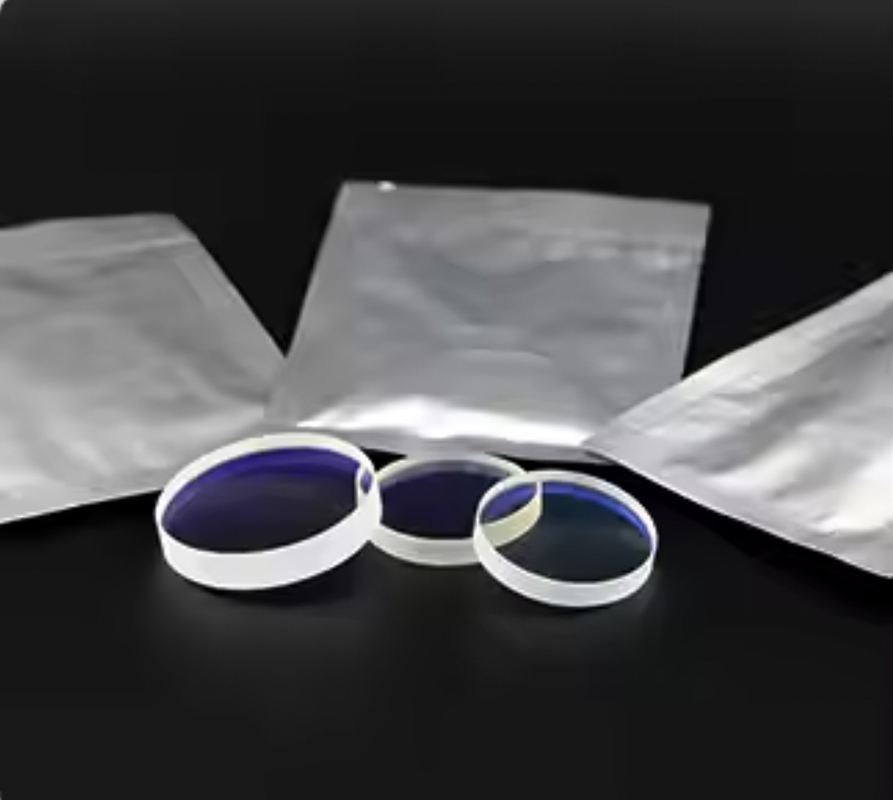

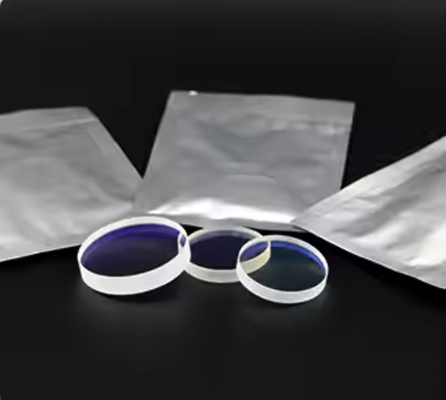

100w High Power Fiber Laser Cutting Tool Protective Window Laser Accessories
Product Details:
| Brand Name: | ANZHI |
| Model Number: | Laser Lens Protective Window |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 300 - 170000 USD |
| Packaging Details: | 1 SET |
| Delivery Time: | 1-3 Work Day |
| Supply Ability: | 1000000 pieces per month |
|
Detail Information |
|||
| Product Warranty: | 1 Year | Product Material: | Various Materials |
|---|---|---|---|
| Product Compatibility: | Compatible With Various Laser Equipment | Product Color: | Various Colors |
| Product Features: | Durable, High Precision, Easy To Install | Beam Quality: | <1.5 |
| Product Usage: | Used For Laser Cutting, Engraving, Marking, Etc. | Product Package: | Individual Or Bulk Packaging Options |
| Product Type: | Accessories | Product Size: | Various Sizes |
| Product Function: | Enhance Laser Performance | Power: | 10-100w (others For Optional) |
| Product Origin: | China | Unit: | Piece |
| Highlight: | 100w Fiber laser Cutting tool,High Power Fiber laser Cutting tool,Protective Window Laser Accessories |
||
Product Description
Professional Laser Accessories for High Power Cutting with Protective Window
Fiber laser cutting system is generally used for cutting metal or non-transparent materials with medium or high power laser.The general optical path system and beam transmission sequence are: collimating and expanding the laser from laser QBH or other types of transfer joint through collimating lens to make it parallel light.Then the parallel light is focused at the working position by using the focusing lens.At the same time,there is a protective lens behind the collimating and focusing lenses to prevent the spatters from damaging the collimating and focusing lenses during the cutting process. In the L-shaped cutting head,a 45 degree lens is placed behind the collimating lens to deflect the collimating beam 90 degrees into the focusing mirror for focusing.
|
PartName
|
ANZHI P/N
|
Coating
|
Diameter (mm) |
Thickness (mm) |
|
Protective Window |
CG000001 |
AR/AR@1030-1090nm |
21.5 | 2 |
| CG000002 | 22.35 | 4.1 | ||
| CG000003 | 24 | 4 | ||
| CG000004 | 24.7 | 2 | ||
| CG000005 | 24.9 | 1.5 | ||
| CG000006 | 25 | 2 | ||
| CG000007 | 25 | 3 | ||
| CG000008 | 25.4 | 4 | ||
| CG000009 | 25.4 | 5 | ||
| CG000010 | 27.9 | 4.1 | ||
| CG000011 | 29.7 | 4.7 | ||
| CG000012 | 30 | 1.5 | ||
| CG000013 | 30 | 2 | ||
| CG000014 | 30 | 4 | ||
| CG000015 | 30 | 5 | ||
| CG000016 | 32 | 2 | ||
| CG000017 | 32 | 5 | ||
| CG000018 | 33 | 1.5 | ||
| CG000019 | 34 | 3 | ||
| CG000020 | 34 | 5 | ||
| CG000021 | 35 | 1.5 | ||
| CG000022 | 35 | 4 | ||
| CG000023 | 36 | 5 | ||
| CG000024 | 37 | 7 | ||
| CG000025 | 38.1 | 1.5 | ||
| CG000026 | 38.1 | 6.35 | ||
| CG000027 | 38 | 2 | ||
| CG000028 | 40 | 2 | ||
| CG000029 | 40 | 3 | ||
| CG000030 | 40 | 5 | ||
| CG000031 | 42 | 3 | ||
| CG000032 | 48 | 3 | ||
| CG000033 | 50 | 1.5 |
| Part Name |
ANZHI P/N |
Coating
|
Diameter(mm) |
Thickness (mm) |
|
Protective Window
|
CG0000034 |
AR/AR@1030-1090nm |
18 | 2 |
| CG0000035 | 20 | 2 | ||
| CG0000036 | 20 | 3 | ||
| CG0000037 | 27 | 2 | ||
| CG0000038 | 28 | 2 | ||
| CG0000039 | 46 | 2 | ||
| CG0000040 | 36 | 2 | ||
| CG0000041 | 50 | 2 | ||
| CG0000042 | 50 | 3 | ||
| CG0000043 | 55 | 1.5 | ||
| CG0000044 | 53 | 2 | ||
| CG0000045 | 75 | 2 | ||
| CG0000046 | 93 | 3 | ||
| CG0000047 | 96 | 3 | ||
| CG0000048 | 113 | 3 | ||
| CG0000049 | 120 | 5 | ||
| CG0000050 | 134 | 3 |
