0.01mm 10W UV Laser Engraving Machine 355nm Industrial Laser Marking Systems
Product Details:
| Brand Name: | ANZHI |
| Model Number: | UV-3W/UV-5W/UV-10W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pieces per month |
|
Detail Information |
|||
| Cooling Method: | Air Cooling | Marking Depth: | 0.01mm |
|---|---|---|---|
| Marking Content: | Text, Numbers, Symbols, Graphics, Barcodes | Power Supply: | 220V/50Hz |
| Working Temperature: | 0-40°C | Marking Area: | 110mm X 110mm |
| Marking Speed: | 7000mm/s | Ccd Camera: | Yes |
| Laser Wavelength: | 355nm | Warranty: | 1 Year |
| Laser Type: | UV Laser | Control Software: | EZCAD |
| Marking Materials: | Plastic, Glass, Metal, Ceramic | ||
| Highlight: | 10w uv laser engraving machine,uv laser engraving machine 355nm,355nm industrial laser marking systems |
||
Product Description
Product Description
UV Laser Engraving Machine for Ultra-Fine Marking Lines with Width of le 0.01mm
| Equipment Size: | 530x780x1480mm (mainframe) 363x539x606mm (chiller) | Marking Range: | 100x100 (standard) 160x160 (optional) |
|---|---|---|---|
| Repetition Frequency: | 10-200KHz | Power Requirements: | 220V/ Single-phase/ 50Hz/ 10A |
| Model: | UV-3W/UV-5W/UV-10W | Laser Power: | 3W/5W/10W |
| Laser Wavelength: | 355nm | Working Distance: | F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm |
| Highlight: |
355nm UV Laser Engraving Machine,UV Laser Engraving Machine 5W,355nm uv laser engraver |
||
Product Description
UV Laser Source UltraViolet Laser Engraver with PC Control System
Product Description:

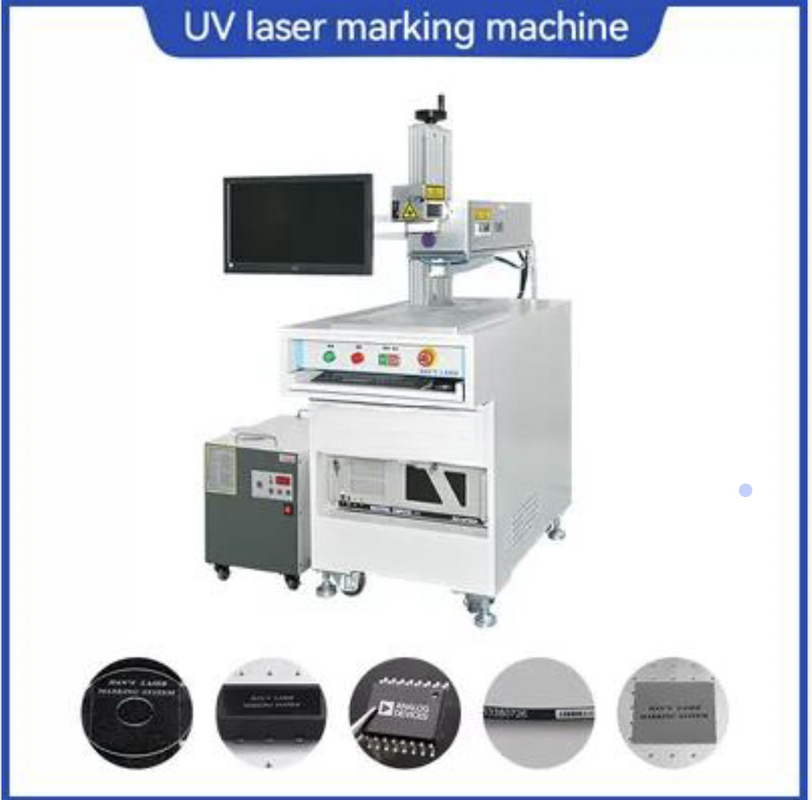

The UV Laser Marking Machine is a powerful and precise laser engraving machine equipped with an ultraviolet laser source and PC control system. It offers a laser power range of 3W, 5W and 10W, with a repetition frequency of 10-200KHz and repeatability of ±0.02mm. It is capable of producing ultra-fine and precise marking lines with a width of ≤0.01mm, making it ideal for a wide range of applications such as UV laser graving, ultraviolet laser scribing and ultraviolet beam engraving.
Features:
- Product Name: UV Laser Marking Machine
- Equipment weight: 120kg For The Main Unit, 34kg For The Chiller (without Water).
- Model: UV-3W/UV-5W/UV-10W
- Repeatability: ±0.02mm
- Power requirements: 220V/ Single-phase/ 50Hz/ 10A
- Laser power: 3W/5W/10W
- Special Feature: UltraViolet Laser Engraver
Technical Parameters:
| Product Attributes | Parameters |
|---|---|
| Equipment weight | 120kg For The Main Unit, 34kg For The Chiller (without Water). |
| Laser Source | UV Laser |
| Marking line speed | ≤7000mm/s |
| Marking range | 100x100 (standard) 160x160 (optional) |
| Laser power | 3W/5W/10W |
| Control System | PC Control |
| Laser wavelength | 355nm |
| Minimum character | 0.06mm |
| Equipment size | 530x780x1480mm (mainframe) 363x539x606mm (chiller) |
| Model | UV-3W/UV-5W/UV-10W |
Applications:
ANZHI LASER UV Laser Marking Machine is designed to engrave and mark on various materials with ultraviolet beams. It features ISO9000,ISO14000 certification, T/T, L/C, D/A, D/P Western Union.MoneyGram,Paypal payment terms, Plywood Box packaging, F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm working distance, ≤7000mm/s marking line speed, PC Control system, ≤0.01mm marking line width and more. The main unit weights 120kg, the chiller weights 34kg (without water). It is available in different models such as UV-3X, UV-5X and UV-10X, with a minimum order quantity of 1 SET. It is highly accurate and reliable, and the price is negotiable. The delivery time is 7-10 work day, and the supply ability is 100 pieces per month.
Customization:
- Brand Name: ANZHI LASER
- Model Number: UV-3W/UV-5W/UV-10W
- Place of Origin: Shenzhen, China
- Minimum Order Quantity: 1 SET
- Price: Negotiable
- Packaging Details: Plywood Box
- Delivery Time: 7-10 Work Day
- Payment Terms: T/T, L/C, D/A, D/P Western Union.MoneyGram,Paypal
- Supply Ability: 100 pieces per month
- Equipment size: 530x780x1480mm (mainframe) 363x539x606mm (chiller)
- Repetition frequency: 10-200KHz
- Laser power: 3W/5W/10W
- Repeatability: ±0.02mm
- Control System: PC Control
- Ultraviolet Beam Engraver
- UV Laser Graving Machine
- High Precision
- High Efficiency
Support and Services:
We provide comprehensive technical support and service for UV laser marking machine, including:
- Pre-sales support: Provide professional advice and technical guidance;
- Installation and commissioning: Provide on-site installation and commissioning services;
- User training: Provide professional operation training and maintenance training;
- After-sales service: Provide free warranty and paid maintenance services.
Packing and Shipping:
The UV Laser Marking Machine is packaged carefully and shipped securely. All packaging materials are environmentally friendly and fully recyclable. The machine is securely wrapped in bubble wrap and boxed, and then placed inside a reusable, sturdy cardboard box. It is then shipped via a reputable freight carrier, or air freight if required, to ensure that it arrives safely and without any damage.
