7000mm/S 1KW UV Laser Machine 160 X 160MM Fiber Marking Laser
Product Details:
| Brand Name: | ANZHI |
| Model Number: | UV-3W/UV-5W/UV-10W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pieces per month |
|
Detail Information |
|||
| Cooling Method: | Air Cooling | Marking Area: | 110mm X 110mm |
|---|---|---|---|
| Control Software: | EZCAD | Marking Depth: | ≤0.5mm |
| Marking Content: | Text, Numbers, Symbols, Barcodes, Graphics | Laser Type: | UV Laser |
| Working Temperature: | 5°C-35°C | Warranty: | 2 Years |
| Marking Line Width: | 0.01mm | Ccd Type: | CCD Camera |
| Laser Power: | 3W/5W/10W | Marking Speed: | ≤7000mm/s |
| Working Voltage: | AC110V/220V 50/60Hz | ||
| Highlight: | 160 x 160mm fiber marking laser,7000mm/s fiber marking laser,7000mm/s fiber laser marking machine |
||
Product Description
F254 Uv Laser Engraver 160x160 Ultraviolet Laser Marking Machine
| Minimum Character: | 0.06mm | Marking Line Width: | ≤0.01mm |
|---|---|---|---|
| Marking Range: | 100x100 (standard) 160x160 (optional) | Machine Power: | 1KW |
| Control System: | PC Control | Marking Line Speed: | ≤7000mm/s |
| Laser Source: | UV Laser | Laser Power: | 3W/5W/10W |
| Highlight: |
F254 Uv Laser Engraver,F254 Ultraviolet Laser Marking Machine,Uv Laser Engraver 160x160 |
||
Product Description
Powerful Ultraviolet Beam Engraver with Working distance F254 Focal Length 210mm ± 5mm
Product Description:

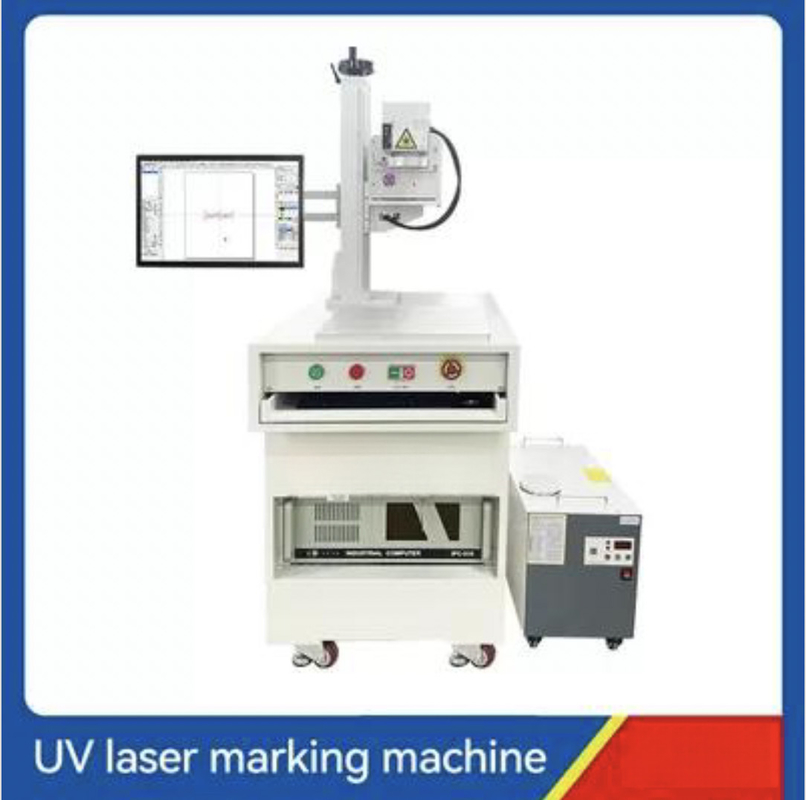

The UV Laser Marking Machine is the ideal laser engraver for precision and accurate results. It utilizes an ultraviolet beam to mark and engrave with highly detailed results. The ultraviolet beam engraver emits a 355nm wavelength laser, which is capable of achieving a minimum character size of 0.06mm. The laser power can be adjusted to 3W, 5W, or 10W, allowing for high-quality and efficient engraving. The machine has an equipment size of 530x780x1480mm (mainframe) and 363x539x606mm (chiller). It is an ultraviolet laser engraver that is perfect for fine details, complex designs, and high-quality engravings.
Features:
- Product Name: UV Laser Marking Machine
- Minimum character: 0.06mm
- Machine power: 1KW
- Control System: PC Control
- Equipment weight: 120kg For The Main Unit, 34kg For The Chiller (without Water).
- Repeatability: ±0.02mm
- Ultraviolet Laser Scriber
Technical Parameters:
| Parameter | Specification |
|---|---|
| Repetition frequency | 10-200KHz |
| Marking line speed | ≤7000mm/s |
| Model | UV-3W/UV-5W/UV-10W |
| Equipment size | 530x780x1480mm (mainframe) 363x539x606mm (chiller) |
| Control System | PC Control |
| Marking line width | ≤0.01mm |
| Working distance | F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm |
| Minimum character | 0.06mm |
| Repeatability | ±0.02mm |
| Laser Source | UV Laser |
| Key Words | Ultraviolet Beam Engraver, UltraViolet Laser Engraver, Ultraviolet Laser Scriber |
Applications:
The UV Laser Marking Machine manufactured by ANZHI LASER is a powerful and versatile engraving machine that is ideal for a wide range of applications, such as engraving, marking and laser cutting. Available in three models - the UV-3W, UV-5W and UV-10W - the UV laser marking machine ,making it a reliable and durable choice for industrial and commercial applications. The machine is packaged in a plywood box and can be shipped in just 7-10 working days. It is available to purchase in a minimum order quantity of one set and the price is negotiable. The UV laser marking machine is capable of producing accurate and precise marks and engravings with a laser source of ultraviolet light. It has a marking range of 100x100 (standard) and 160x160 (optional) and is able to produce a minimum character size of 0.06mm. It also has a working distance of F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm and a marking line speed of ≤7000mm/s. It is also capable of producing up to 100 pieces per month, making it a highly reliable and productive machine. Payment terms are T/T, L/C, D/A, D/P, Western Union, MoneyGram,Paypal.
Customization:
Brand Name: ANZHI LASER
Model Number: UV-3W/UV-5W/UV-10W
Place of Origin: Shenzhen, China
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 7-10 Work Day
Payment Terms: T/T, L/C, D/A, D/P Western Union.MoneyGram,Paypal
Supply Ability: 100 pieces per month
UV Laser Marker:Marking range: 100x100 (standard) 160x160 (optional) Laser Source: UV Laser Repetition frequency: 10-200KHz Model: UV-3X/UV-5X/UV-10X Working distance: F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm
Support and Services:
Our experienced technical support team is available to help you with any issues you may have while using our UV Laser Marking Machine. We offer phone and email support, as well as remote troubleshooting, to ensure your machine is running properly.
We also offer a variety of services such as product training, on-site installation, and preventive maintenance. Our team of experts can assist you in getting the most out of your machine, and can help you maximize its efficiency and productivity.
Packing and Shipping:
Packaging and Shipping for UV Laser Marking Machine:
- The machine shall be placed in a wooden box with foam lining.
- The foam lining will be designed to protect the machine from external shock and vibration.
- The box shall be sealed with industrial adhesive tape.
- The box shall be labeled with the product name, product serial number and shipment date.
- The box shall be shipped in a container with sufficient cushioning material to protect the machine.
