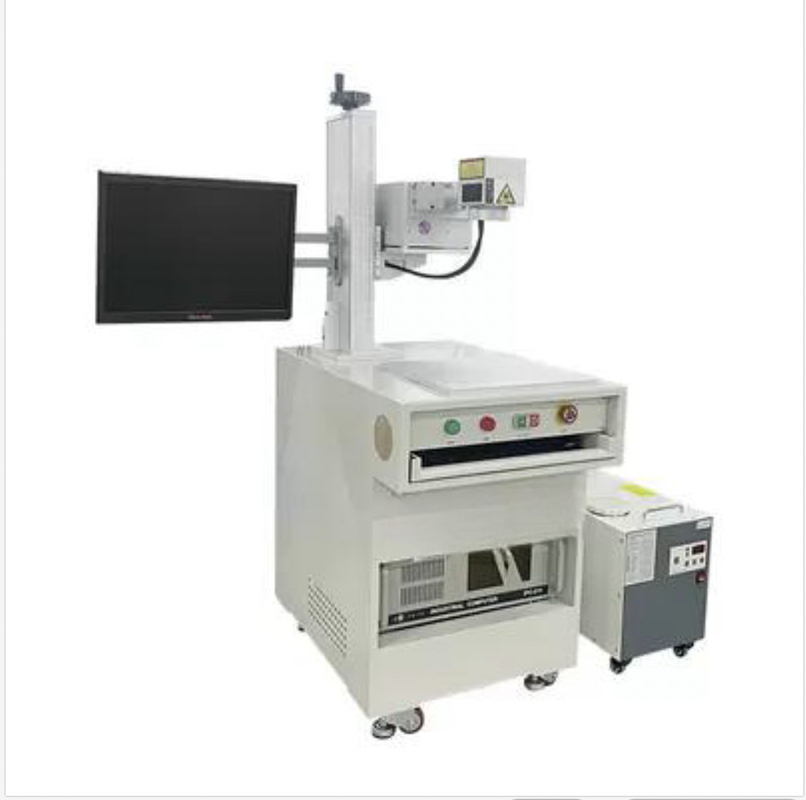

Ultraviolet Laser Scriber 3W Laser Uv Marking Machine 200KHz
Product Details:
| Brand Name: | ANZHI |
| Model Number: | UV-3W/UV-5W/UV-10W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 pieces per month |
|
Detail Information |
|||
| Laser Power: | 3W/5W/10W | Wavelength: | 355nm |
|---|---|---|---|
| Working Temperature: | 0-40°C | Supported File Formats: | PLT, AI, DXF, BMP, JPG, Etc. |
| Marking Depth: | 0.01mm-0.2mm | Working Voltage: | AC 220V/50Hz |
| Software: | EZCAD | Cooling System: | Air Cooling |
| Control System: | PC Control | Marking Speed: | 7000mm/s |
| Marking Content: | Text, Numbers, Symbols, Graphics, Barcodes, QR Codes | Marking Area: | 110mm X 110mm |
| Ccd Type: | High-Resolution CCD | Laser Type: | UV Laser |
| Highlight: | ultraviolet laser scriber 3w,uv marking machine 200khz,3w uv marking machine |
||
Product Description
| Control System: | PC Control | Marking Line Width: | ≤0.01mm |
|---|---|---|---|
| Repeatability: | ±0.02mm | Equipment Weight: | 120kg For The Main Unit, 34kg For The Chiller (without Water). |
| Laser Power: | 3W/5W/10W | Repetition Frequency: | 10-200KHz |
| Equipment Size: | 530x780x1480mm (mainframe) 363x539x606mm (chiller) | Power Requirements: | 220V/ Single-phase/ 50Hz/ 10A |
| Highlight: |
Ultraviolet Laser Scriber 3W,3W Laser Uv Marking Machine,Laser Uv Marking Machine 200KHz |
||
Product Description
Precision Marking Ultraviolet Laser Scriber 3W Power Optional 160x160 Range
Product Description:
UltraViolet Laser Engraver is the perfect choice for a wide range of industrial marking applications. Our UV Laser Marking Machine is designed to deliver high precision, consistent results and maximum efficiency. Whether you’re looking for an Ultraviolet Laser Scriber for general industrial marking or a specialized solution for your unique application, our UV Laser Marking Machine will meet your needs. With a machine power of 1KW, our UV Laser Marking Machine offers three models of UV-3W/UV-5W/UV-10W to choose from, covering a marking range of 100x100 (standard) 160x160 (optional). The laser wavelength of 355nm ensures a highest marking line speed of ≤7000mm/s, making it ideal for industrial marking applications.
Features:
- Product Name: UV Laser Marking Machine
- Laser power: 3W/5W/10W
- Equipment weight: 120kg For The Main Unit, 34kg For The Chiller (without Water).
- Working distance: F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm
- Laser Source: UV Laser
- Marking line speed: ≤7000mm/s
- Product Name: UV Laser Marker
- Product Name: Ultraviolet Laser Scriber
Technical Parameters:
| Property | Parameter |
|---|---|
| Product Name | UV Laser Marking Machine |
| Technical Name | Ultraviolet Beam Engraver, Ultraviolet Laser Scriber, UltraViolet Laser Engraver |
| Working Distance | F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm |
| Laser power | 3W/5W/10W |
| Machine power | 1KW |
| Laser Source | UV Laser |
| Model | UV-3X/UV-5X/UV-10X |
| Laser wavelength | 355nm |
| Marking line speed | ≤7000mm/s |
| Equipment size | 530x780x1480mm (mainframe) 363x539x606mm (chiller) |
| Power requirements | 220V/ Single-phase/ 50Hz/ 10A |
| Marking line width | ≤0.01mm |
Customization:
ANZHI LASER provides customized services for UV Laser Marking Machines with high precision. Our model numbers are UV-3W/UV-5W/UV-10W. It requires a minimum order of 1 SET and the price is negotiable. The packaging details are Plywood Box. The delivery time is 7-10 work days and payment terms are T/T, L/C, D/A, D/P Western Union.MoneyGram,Paypal. The supply ability is 100 pieces per month. The machine power is 1KW, and the equipment size is 530x780x1480mm (mainframe) 363x539x606mm (chiller). The marking line speed is ≤7000mm/s and the marking line width is ≤0.01mm. The working distance is F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm.
Our UV Laser Graving Machine has a great performance in precision engraving and marking. With excellent stability and strong UV beam, it is the best choice for high-precision engraving and marking. It is the perfect solution for permanent marking on various materials. It is suitable for a variety of materials, including plastic, metal, glass, ceramics, etc. It is widely used in high-end industries such as electronics, electrical appliances, communications, automotive parts, jewelry, medical equipment, and more.
If you are looking for a UV Laser Marking Machine with high precision, HAN'S LASER is the best choice. We provide customized services to meet your specific needs. We are committed to providing you with superior quality and excellent service. For more information, please contact us today.
Support and Services:
We provide a range of tech support and service options to ensure you get the most out of your UV Laser Marking Machine. Our team of experts are on hand to answer any questions you may have about the machine and its capabilities.
- On-site installation and training
- Remote diagnostic and troubleshooting
- Regular maintenance and updates
- 24/7 phone and online support
- Spare parts and consumables
Packing and Shipping:
The UV Laser Marking Machine is packaged in a cardboard box, using bubble wrap and foam padding for added protection. The box is designed to protect the machine and its accessories from any potential damage during the shipping process.
The UV Laser Marking Machine will be shipped via a reliable courier service. The delivery process is tracked, so customers can stay up-to-date on their order's progress. Depending on the customer's location, the estimated delivery time is usually within 7-10 business days.
