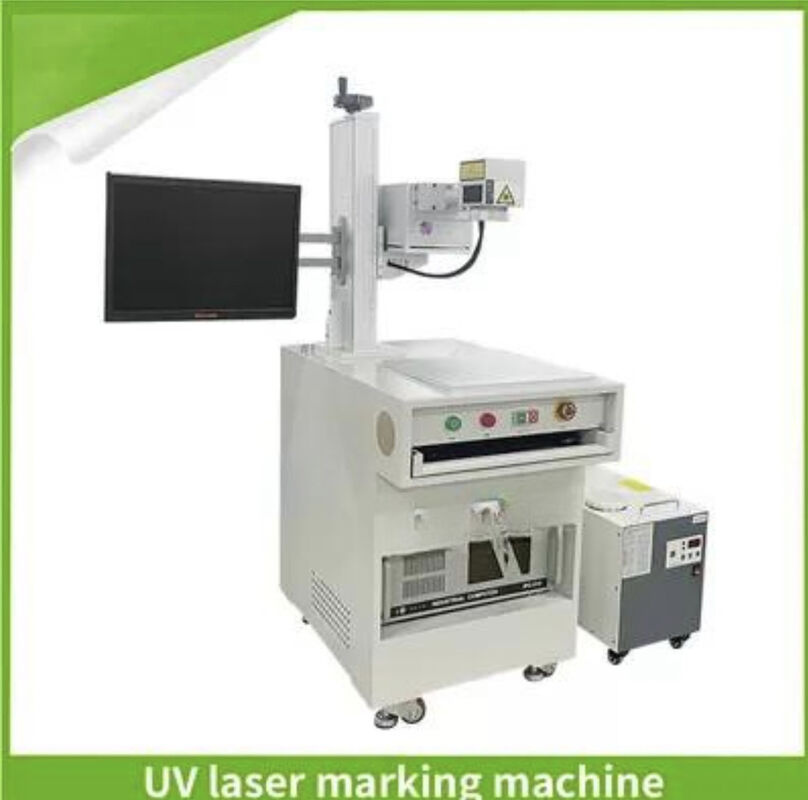

High Precision UV Laser CCD Marking Machine for Ultra-Fine Marking and Glass Products
Product Details:
| Place of Origin: | China |
| Brand Name: | ANZHI |
| Model Number: | UV-3W/UV-5W/UV-10W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | 300 - 170000 USD |
| Payment Terms: | D/P, T/T, Western Union, MoneyGram, D/A, L/C |
| Supply Ability: | 100 pieces per month |
|
Detail Information |
|||
| Highlight: | precision uv laser ccd marking machine,high precision uv laser ccd marking machine,precision uv laser marking machine |
||
|---|---|---|---|
Product Description
| Equipment Weight: | 120kg For The Main Unit, 34kg For The Chiller (without Water). | Working Distance: | F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm |
|---|---|---|---|
| Minimum Character: | 0.06mm | Laser Power: | 3W/5W/10W |
| Laser Source: | UV Laser | Repetition Frequency: | 10-200KHz |
| Control System: | PC Control | Equipment Size: | 530x780x1480mm (mainframe) 363x539x606mm (chiller) |
| Highlight: |
100x100 UV Laser Marking Machine,UV Laser Marking Machine 3W,10W Ultraviolet Laser Marker |
||
Product Description
Efficient and Precise Engravings with 100x100 Marking Range UV Laser Marking Machine
Product Description:
The UltraViolet Laser Engraver, also known as UV Laser Marking Machine or Ultraviolet Laser Scriber, is a reliable and easy-to-use device for surface or material engraving. It is powered by a 1KW laser source and can be operated with a single-phase 220V/50Hz/10A power supply. It features a high precision marking line width of ≤0.01mm with a repeatability of ±0.02mm. The standard marking range is 100x100 mm, but there is an optional 160x160 mm size available as well. It is suitable for a variety of applications, including product identification, serial numbers, barcodes, and logos.
Features:
- Product Name: UV Laser Marking Machine
- Equipment size: 530x780x1480mm (mainframe) 363x539x606mm (chiller)
- Machine power: 1KW
- Repetition frequency: 10-200KHz
- Model: UV-3X/UV-5X/UV-10X
- Laser power: 3W/5W/10W
- Special Feature: Ultraviolet Laser Scriber, UV Laser Graving Machine, UV Laser Graving Machine
Technical Parameters:
| Parameter | Description |
|---|---|
| Laser Power | 3W/5W/10W |
| Model | UV-3W/UV-5W/UV-10W |
| Repeatability | ±0.02mm |
| Repetition Frequency | 10-200KHz |
| Minimum Character | 0.06mm |
| Working Distance | F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm |
| Control System | PC Control |
| Equipment Weight | 120kg For The Main Unit, 34kg For The Chiller (without Water). |
| Laser Wavelength | 355nm |
| Power Requirements | 220V/ Single-phase/ 50Hz/ 10A |
| Product Name | UltraViolet Laser Engraver, Ultraviolet Laser Scriber, UV Laser Graving Machine |
Applications:
ANZHI LASER UV Laser Marking Machine is a high-precision, efficient and compact ultra-violet laser engraving machine. It has obtained certification of ISO9000 and ISO14000, which ensures the quality and safety of the product. With the Plywood Box packaging, it can be delivered quickly within 7-10 working days. It accepts various payment terms including T/T, L/C, D/A, D/P Western Union.MoneyGram,Paypal, and is provided with minimum order quantity of 1 SET. The price of the product is negotiable. It has a supply ability of 100 pieces per month. Its fast marking line speed is ≤7000mm/s and the marking line width is ≤0.01mm. The machine power is 1KW and the laser power is 3W/5W/10W.
Customization:
Brand Name: ANZHI LASER
Model Number: UV-3W/UV-5W/UV-10W
Place of Origin: Shenzhen, China
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 7-10 Work Day
Payment Terms: T/T, L/C, D/A, D/P Western Union.MoneyGram,Paypal
Supply Ability: 100 pieces per month
Machine power: 1KW
Repetition frequency: 10-200KHz
Working distance: F160 Focal Length 192mm ± 5mm / F254 Focal Length 210mm ± 5mm
Equipment weight: 120kg For The Main Unit, 34kg For The Chiller (without Water).
Laser wavelength: 355nm
UV Laser Marker, Ultraviolet Laser Scriber, UV Laser Graving Machine
Support and Services:
We offer comprehensive technical support and service for our UV Laser Marking Machine. Our services include:
- Installation and commissioning
- Technical support and troubleshooting
- Spare parts and consumables supply
- Maintenance and repair
- Software upgrades and updates
- Training and user education
Packing and Shipping:
The UV Laser Marking Machine will be packaged in a sturdy cardboard box with protective foam and bubble wrap inside. It will be securely fastened to prevent any movement during shipping. It will be shipped via a reliable and reputable shipping carrier.
